L-500 Adapter Bracket

L-500 Adapter Bracket

For Vertical Mounting of Linear and Rotation Stages

Vacuum-compatible articles to 10^-9 hPa available

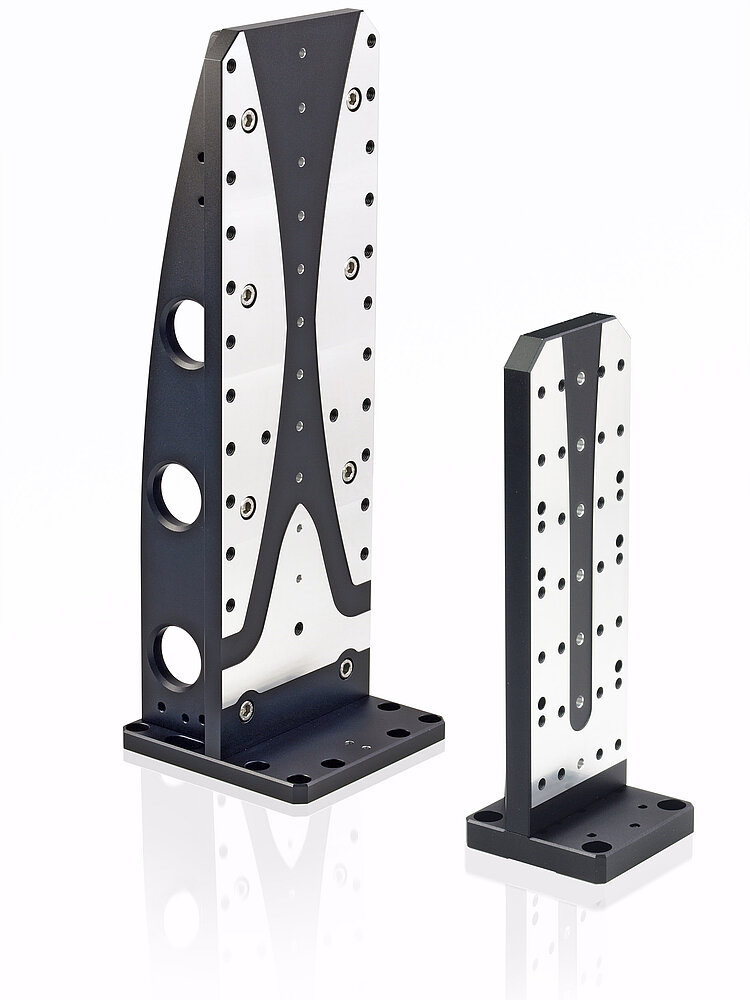

L-500.AV1 and L-500.AV3

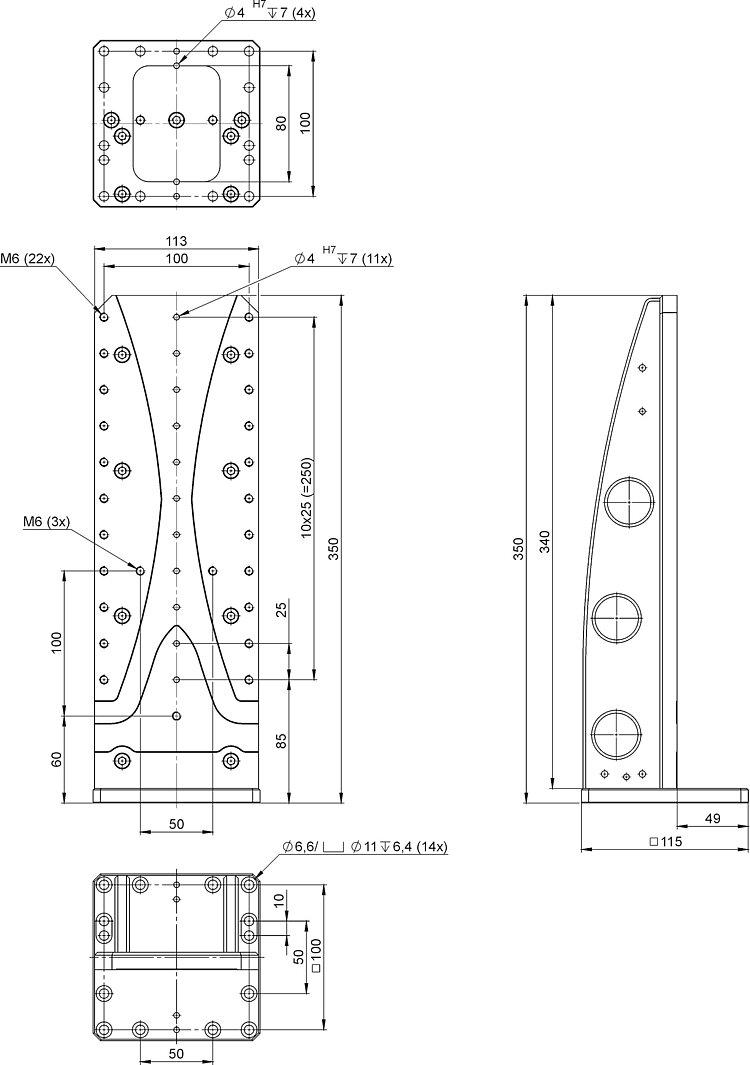

L-500.AV1, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

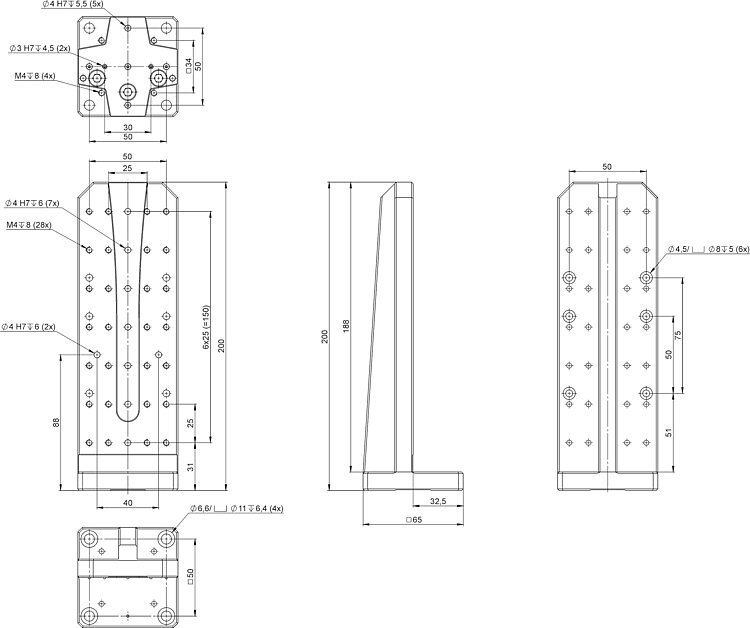

L-500.AV3, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

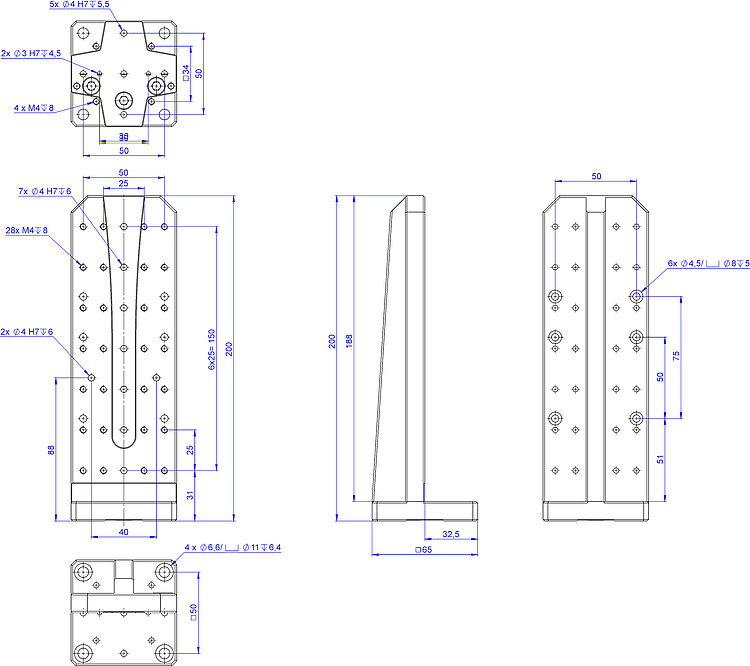

L-500.AV3-V6, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

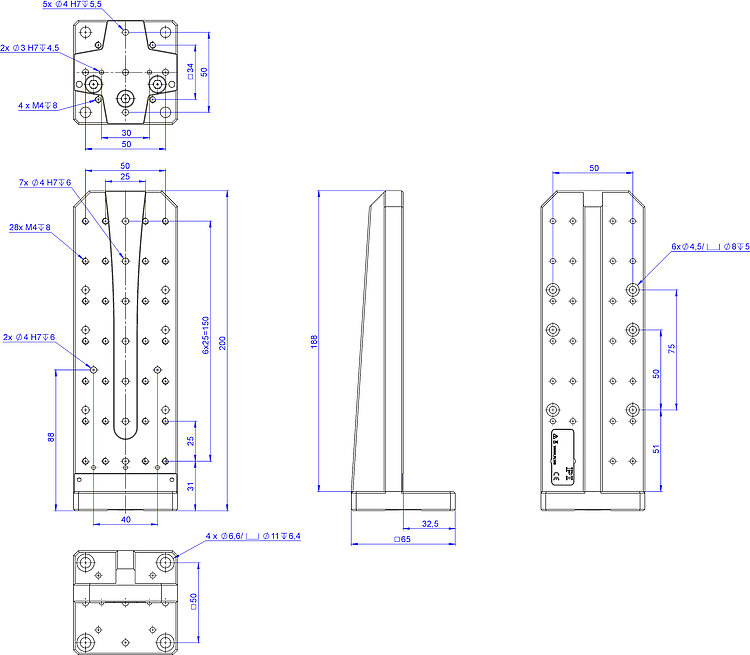

L-500.AV3-V9, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

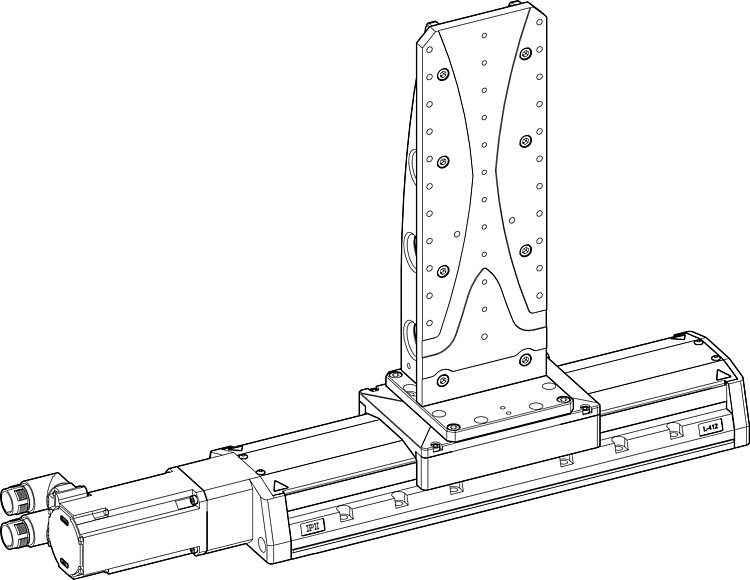

The L-500.AV1 adapter bracket was mounted onto an L-412.099232 high-load linear stage (adapter bracket on positioner).

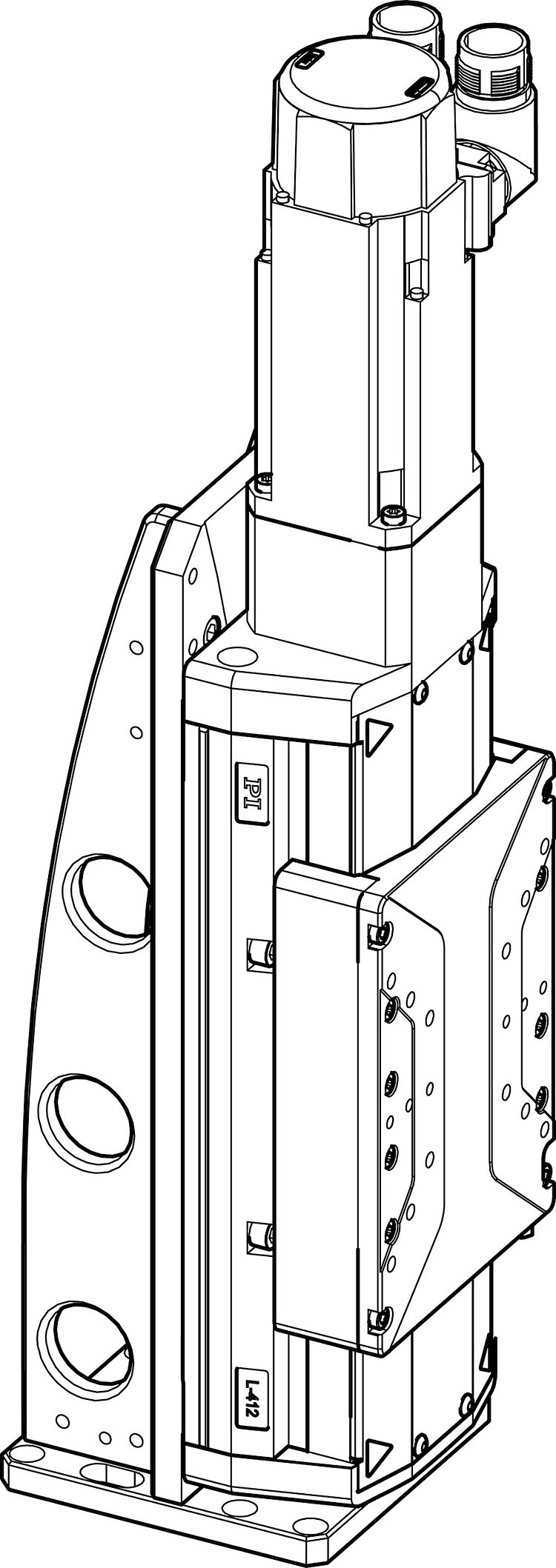

The L-412.039054B high-load linear stage was mounted onto an L-500.AV1 adapter bracket (positioner on adapter).

Download datasheet specifications quote / order

Datasheet

Version / Date

2021-11-11

pdf - 672 KB

Version / Date

2021-11-11

pdf - 673 KB

Version / Date

2021-01-18

pdf - 756 KB

Version / Date

2019-07-22

pdf - 1 MB

	Unit	L-500.AV1	L-500.AV3	L-500.AV3-V6	L-500.AV3-V9
Mass	kg	2.15	0.6	0.6	0.6
Material		Aluminum, anodized	Aluminum, anodized	Aluminum, anodized	Aluminum, uncoated
Vacuum compatibility		–	–	to 10^-6 hPa	to 10^-9 hPa

Linear stages

Compatibility	L-500.AV1		L-500.AV3(-Vx)
Mounting type	Adapter on positioner	Positioner on adapter*	Adapter on positioner	Positioner on adapter*
HPS-170	x	x (155)	x	–
L-406	–	–	x	x
L-408	–	–	–	x
L-412	x	x (52)	x	–
L-417	x	–	–	–
L-509	–	–	x	x
L-511	x	x (155)	x	–
L-812	x	x (102)	x**	–
LMS-180	x	–	x	–
LMS-230	x	–	–	–
LMS-270	x	–	x	–
LS-65	–	–	x	–
LS-110	x	x (155)	x	–
LS-120	–	x	–	–
LS-180	–	–	x	–
LS-270	x	–	x	–
PLS-85	–	–	x	x (102)
UPL-120	–	–	–	x
UPM-160	x	–	x	–
UPS-150	x	x (155)	x	–
V-412.xxxxxxE0	x	x (102)	x	–
V-412.xxxxxxE1	x	x (52)	x	–
V-417.xxxxxxE0x	x	–	–	–
V-417.xxxxxxE1	x	–	–	–
V-817	–	–	–	–

Rotation stages

Compatibility	L-500.AV1		L-500.AV3(-Vx)
Mounting type	Adapter on positioner	Positioner on adapter*	Adapter on positioner	Positioner on adapter*
DT-65 N	–	–	–	x
DT-80	–	–	–	x
DT-80 R	–	–	–	x
L-611	–	x	x	–
PRS-110	–	x	x	–
UPR-100	–	–	–	–
UPR-100 AIR	–	–	–	–
UPR-120	–	x	x	–
UPR-120 AIR	–	x	x	–
UPR-160	x	x	x	–
UPR-160 AIR	x	x	x	–
UPR-270	x	–	x	–
UPR-270 AIR	x	–	x	–

Goniometer

Compatibility	L-500.AV1		L-500.AV3(-Vx)
Mounting type	Adapter on positioner	Positioner on adapter*	Adapter on positioner	Positioner on adapter*
WT-85	–	–	x	x
WT-90	–	–	x	–
WT-100	–	–	–	x
WT-120	–	–	x	–

Z stages

Compatibility	L-500.AV1		L-500.AV3(-Vx)
Mounting type	Adapter on positioner	Positioner on adapter*	Adapter on positioner	Positioner on adapter*
L-310	–	–	x	–
ES-100	–	–	x	–

XY stages

Compatibility	L-500.AV1		L-500.AV3(-Vx)
Mounting type	Adapter on positioner	Positioner on adapter*	Adapter on positioner	Positioner on adapter*
L-731	x	–	x	–
V-731	x	–	x	–
L-741	x	–	x	–
V-741	x	–	x	–

* The values in brackets indicate the maximum travel range in mm for which this type of mounting is possible.

** only with the L-812.TT1 motion platform

Download datasheet downloads quote / order

Datasheet

Version / Date

2021-11-11

pdf - 672 KB

Version / Date

2021-11-11

pdf - 673 KB

Version / Date

2021-01-18

pdf - 756 KB

Version / Date

2019-07-22

pdf - 1 MB

3D Models

zip - 412 KB

English

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

L-500.AV1

Adapter bracket for vertical mounting of positioners with up to 120 mm width and 400 mm length

Add to quote list Remove from quote list

L-500.AV3

Adapter bracket for vertical mounting of positioners with up to 100 mm width and 300 mm length

Add to quote list Remove from quote list

L-500.AV3-V6

Adapter bracket for vertical mounting of positioners with up to 100 mm width and 300 mm length, vacuum compatible to 10^-6 hPa

Add to quote list Remove from quote list

L-500.AV3-V9

Adapter bracket for vertical mounting of positioners with up to 100 mm width and 300 mm length, vacuum compatible to 10^-9 hPa

Add to quote list Remove from quote list

Ask for custom design quote list
