Controllers & Drivers for Piezomotors

Controllers & Drivers for Piezomotors

Piezomotor controllers are designed to optimize the performance of the various piezomotor drives. They are available as single-channel or multi-channel devices in  benchtop, rackmount or OEM versions.

For Q-Motion® and PiezoMike Inertia Piezomotors

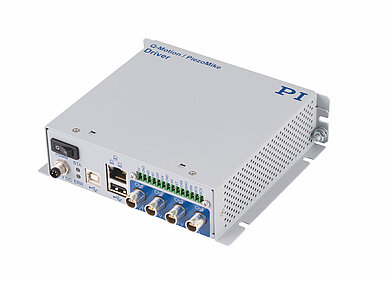

E-872.401 Q-Motion® Piezo Motor / PiezoMike Drive Electronics

Drives up to 4 Linear Actuators, Benchtop Device

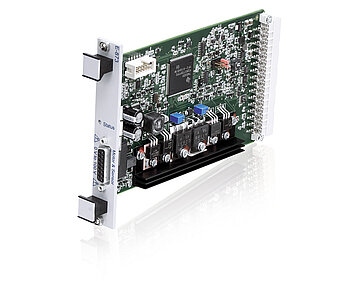

E-873.10C885 Q-Motion® Controller Module for C-885 PIMotionMaster

For Piezoelectric Inertia Drives, 1 Axis

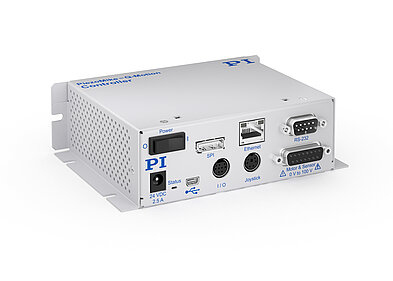

E-873 Q-Motion® Servo Controller, 1 Axis

For Piezoelectric Inertia Drives, SPI, TCP/IP, USB, RS-232 Interfaces

For PILine® Ultrasonic Piezomotors

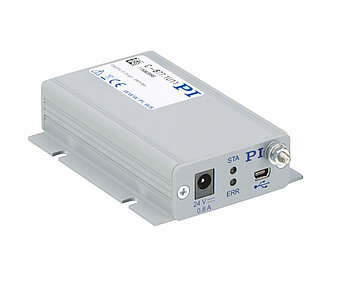

C-877.1U11 PILine® Motion Controller

For Ultrasonic Piezo Motors, 1 Axis, Inexpensive and Compact
  • For Ultrasonic Motors
  • For stand-alone operation
  • PID servo control
  • Low cost

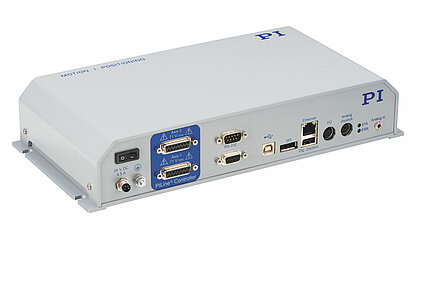

C-867.2U2 PILine

For two-axis positioning stages with PILine
  • Channels/axes: 2
  • Drive type/amplifier type: PILine® piezo motor, performance classes 1 and 2
  • Communication interfaces: USB, RS-232, TCP/IP, SPI
  • Housing type Benchtop device

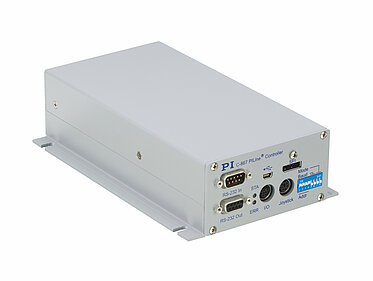

C-867.1U PILine

For Single-Axis Positioning Stages with PILine
  • Channels/axes: 1
  • Drive type/amplifier type: PILine® piezo motor, performance classes 1 and 2
  • Communication interfaces: USB, RS-232, SPI
  • Housing type: Benchtop device

C-867.10C885 PILine® Controller Module

For C-885 PIMotionMaster Modular Controller System
  • Dynamic frequency control
  • High velocity & resolution
  • Fast start-up

For PiezoWalk® Piezo Stepping Drives

E-861.11C885 NEXACT® Controller Module

For the C-885 PIMotionMaster Modular Controller System
PI E-861

E-861 PiezoWalk® NEXACT® Controller

Networkable Controller for NEXACT® Linear Drives and Positioners
