Piezoceramic Plates & Blocks

L       Length
W      Width
TH     Thickness
P       Polarization direction

Length L
1 to 80 mm

Width W
1 to 60 mm

Thickness TH
0.1 to 30 mm

Electrodes
Thick layer (silver), electroless nickel, thin layer (CuNi, Au)

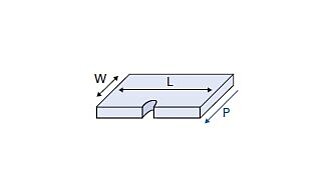

L       Length
W      Width
P       Polarization direction

Length L
max. 75 mm

Width W
max. 25 mm

Thickness TH
0.2 to 10 mm

Datasheet

Version / Date

2025-08

pdf - 1 MB

Version / Date

2025-08

pdf - 650 KB

Documentation

Handling and Electrical Contacting of Piezo Components

Version / Date

2019-02-12

pdf - 718 KB

Version / Date

2019-02-12

pdf - 725 KB

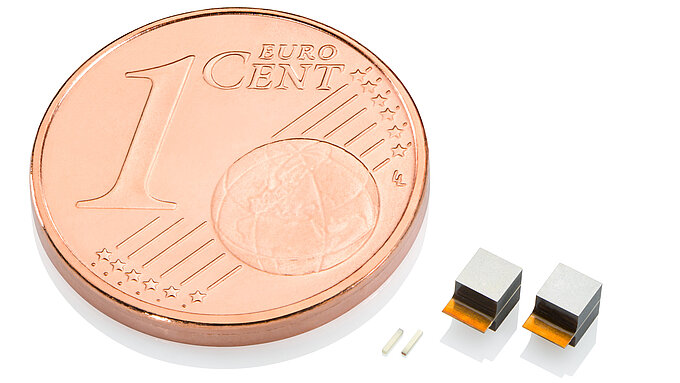

Plates
