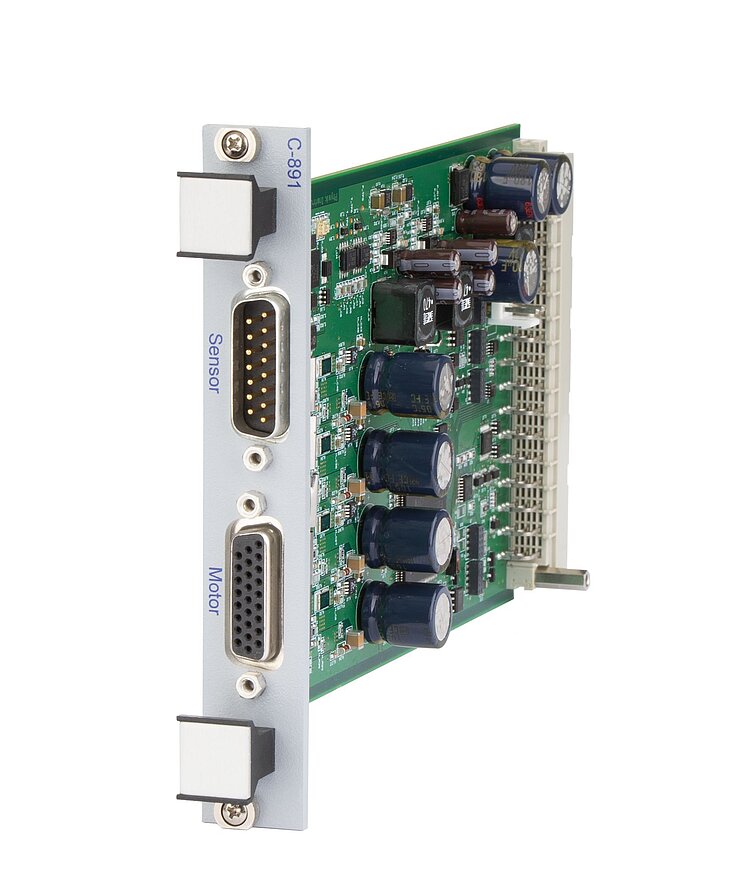

C-891.11C885 PIMag® Controller Module

For the C-885 PIMotionMaster Modular Controller System

  • For 3-phase linear motors
  • Output current 5 A
  • 20-kHz control bandwidth
  • BiSS interface for absolute encoders
  • Protection against overload, overcurrent, overtemperature
C-891.11C885 PIMag® Controller Module
Product Description Specifications Downloads Quote / Order

Motor control, servo control, and protective functions

1 motor channel, 1 sensor channel. For three-phase linear motors with currents of 5 A per phase. Sine-commutated operation, field-oriented current control. Automatic adjustment of the commutation angle. PID controller for position and velocity. Protection for motor and motor driver due to protective shutdown and current limitation.

Encoder inputs

Differential signal transmission for digital (A/B) or analog (sin/cos) encoder signals. Supports BiSS interface for absolute encoders. TTL inputs for limit and reference switches.

Plug-and-play installation in the C-885 PIMotionMaster

Can be inserted in any free slot. Automatic detection and external communication (USB, Ethernet) by the processor and interface module of the C-885. Can be expanded with optional digital inputs and outputs. Power via the power supply of the C-885.

Accessories required for digital inputs and outputs

C-885.AA01 adapter board and C-885.iD digital interface module.
