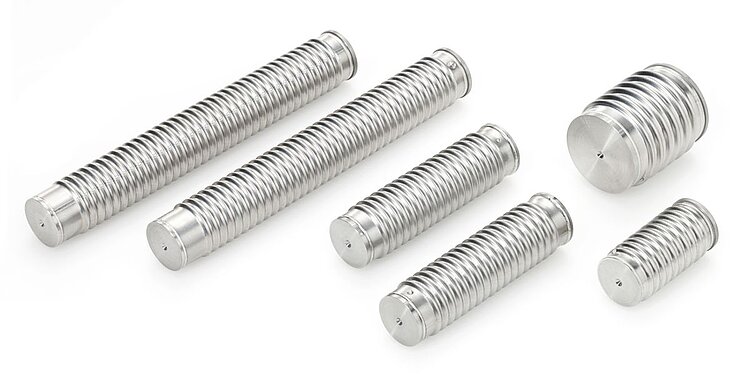

P-88x.x5 Encapsulated PICMA® Stack Piezo Actuators

For Harsh Industrial Environments

Splash-resistant full encapsulation
Superior lifetime
High stiffness
Microsecond response
Subnanometer resolution
UHV-compatible to 10^-9 hPa

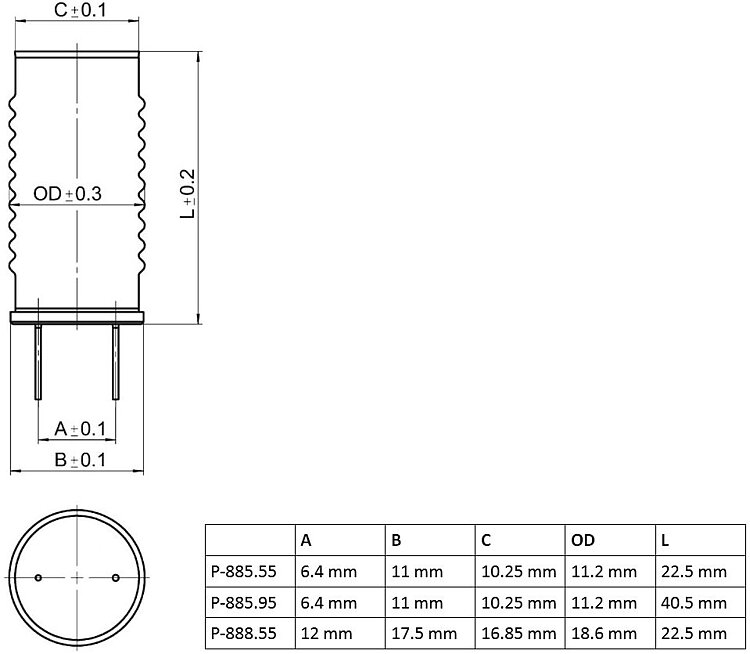

Encapsulated PICMA® actuators, dimensions in mm

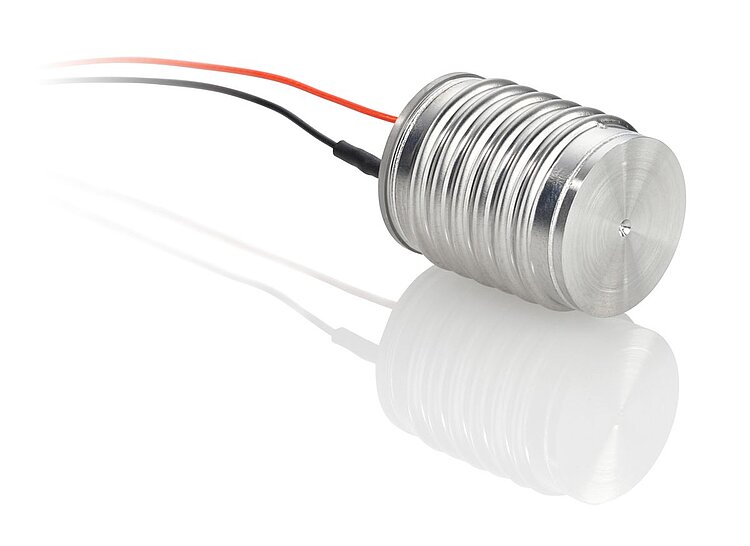

Encapsulated PICMA® Stack actuators can also be used when the application environment is characterized by oil, splash water or continuously high humidity. The piezo actuators are surrounded by inert gas.

Operating voltage -20 to 120 V. UHV-compatible to 10^-9 hPa. Version for operation in environments where exposure to splash water, high humidity or oil occurs.

Download datasheet specifications

Datasheet

Version / Date

2017-09-19

pdf - 356 KB

Version / Date

2017-09-19

pdf - 355 KB

Download

	P-885.55	P-885.95	P-888.55	Unit
Dimensions OD × L	11.2 mm × 22.5 mm	11.2 mm × 40.5 mm	18.6 mm × 22.5 mm
Nominal travel range	14	30	14	µm
Maximum travel range	17	36	17	µm
Blocking force	850	900	3400	N
Stiffness	50	25	200	N/µm
Capacitance	1.5	3.1	6.0	µF
Resonant frequency	60	35	60	kHz
Mass	6.5	11.6	20.0	g

Nominal travel range: At 0 to 100 V, tolerance ±10 %.

Maximum travel range: At 0 to 120 V, tolerance ±10 %.

Blocking force: At 0 to 120 V.

Electrical capacitance: Measured at 1 V_pp, 1 kHz, RT, tolerance ±20 %.

Resonant frequency: Measured at 1 V_pp, unloaded, unclamped. The value is halved for unilateral clamping, tolerance ±20 %.

Piezo ceramic type: PIC252.

Standard connections: PTFE-insulated stranded wires, UHV compatible, 100 mm, AWG 30, Ø 0.61 mm.

Operating voltage range: -20 to 120 V.

Operating temperature range: -40 to 150 °C.The operating temperature range does not apply to dynamic operation. If your application involves dynamic operation, contact our .

Ask about custom designs!

Download datasheet downloads

Datasheet

Version / Date

2017-09-19

pdf - 356 KB

Version / Date

2017-09-19

pdf - 355 KB

Download

Documentation

P-885.55 / P-885.95 / P-888.55 Encapsulated PICMA® Piezo Actuators, Stranded Wires

Version / Date

1.1.0 2021-09-27

pdf - 2 MB

Version / Date

1.1.0 2021-09-27

pdf - 2 MB

Documentation

PICMA® Multilayer Piezo Actuators: P-08x, P-88x, PD0xx, PD410, PL0xx, PL1xx, PICMA® Stack, PICMA® Chip, PICMA® Bender

Version / Date

3.1.0 09/2024

pdf - 136 KB

Version / Date

3.1.0 09/2024

pdf - 138 KB

Download

3D Models

zip - 295 KB

quote / order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

P-885.55

Encapsulated PICMA® Piezo Actuator, 14 µm travel range, OD 11.2 mm × L 22.5 mm, stranded wires

Add to quote list Remove from quote list

P-885.95

Encapsulated PICMA® Piezo Actuator, 30 µm travel range, OD 11.2 mm × L 40.5 mm, stranded wires

Add to quote list Remove from quote list

P-888.55

Encapsulated PICMA® Piezo Actuator, 14 µm travel range, OD 18.6 mm × L 22.5 mm, stranded wires

Add to quote list Remove from quote list

Custom designs or different specifications on request.

Ask for custom design quote list

Quickly receive an answer to your question by email or phone from a local PI sales engineer.

+65 665 98400 info-seasia@pi.ws

Contact us!
