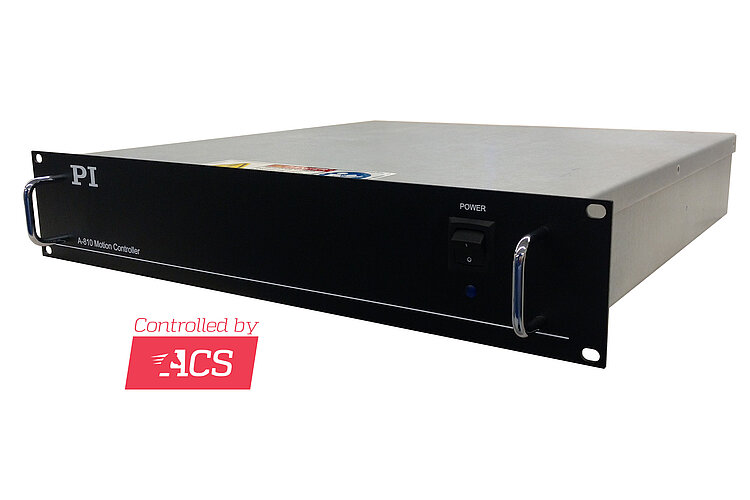

A-81x PIglide Motion Controller for 1, 2 or 4 Axes

For Stages with Direct Drive, TCP/IP Interface

  • 1, 2, & 4 motion axes
  • Fully integrated closed-loop servo control, amplifier module, and power supplies
  • For voice coil drives, DC motors, and brushless 3-phase motors
  • Quiet PWM drives
  • Encoder inputs support incremental (analog sine/cosine and RS-422) and absolute (BiSS-C, EnDat 2.1/2.2) encoder
  • Output current up to 10 A continuous / 20 A peak per axis
A-81x PIglide Motion Controller for 1, 2 or 4 Axes
Product Description Specifications Downloads Quote / Order

Overview

The A-81x motion controller series from PI offers a fully integrated electronics solution with controller, servo drives, and power supplies in a compact 19-inch rack unit. The A-81x controllers are designed and optimized for the operation of air bearing PIglide linear and rotation stages with direct drive and other positioners from PI that are equipped with servo motors and high-resolution encoders.

Standard options include inputs for incremental and absolute encoders. Support for sine/cosine encoders has an integrated interpolation factor of up to 4096x. All controllers feature on-board flash memory for stored motion programs and parameters.

The A-81x controllers can be operated in stand-alone mode running stored programs, or controlled via an external PC. A PC is required for programming and startup. All software is supplied with the controller.

If the controller is purchased together with a PIglide air bearing stage or positioning system, PI will do the servo tuning, startup of the controller, and error calibration, and supply a complete ready-to-use positioning system.

The A-81x motion controller features the state-of-the-art ACS SPiiPlusEC motion controller and EtherCAT master.

Options and Upgrades

  • Various encoder inputs. Custom configurations are required for mixing encoder types across channels.
  • Various motor current output levels
  • G-Code Programming
  • Input shaping for an improved settling behavior and a decreased motion caused by reaction forces
  • Additional control axes for external drives via EtherCAT (up to 64 axes)
  • ServoBoostTM or ServoBoostTM PLUS for an improved position stability and a reduction of servo jitter
  • Additional programming buffers for storing motion programs (up to 64 axes)

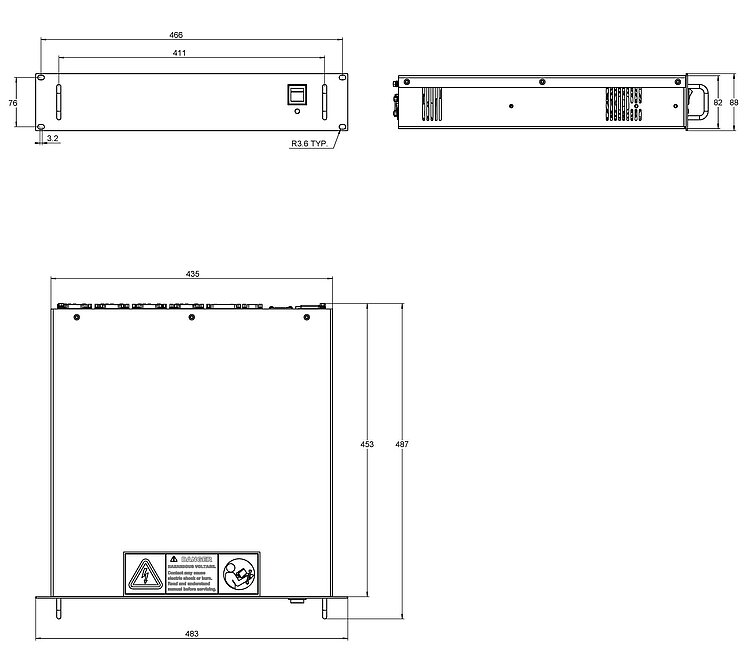

Specifications

Datasheet

Datasheet A-81x

Version / Date
2020-07-03
pdf - 396 KB
Version / Date
2020-07-03
pdf - 400 KB
Version / Date
2021-01-14
pdf - 436 KB

Downloads

Datasheet

Datasheet

Datasheet A-81x

Version / Date
2020-07-03
pdf - 396 KB
Version / Date
2020-07-03
pdf - 400 KB
Version / Date
2021-01-14
pdf - 436 KB

Documentation

Documentation

User Manual A-811.21xxx

A-81x Single Axis Motion Controller

Version / Date
2020-05-27
pdf - 2 MB
English
Documentation

User Manual A-812.21xxx

A-81x 2-Axis Motion Controller

Version / Date
2020-05-27
pdf - 2 MB
English
Documentation

User Manual A-814.21xxx

A-81x 4-Axis Motion Controller

Version / Date
2020-05-27
pdf - 2 MB
English

3D Models

3D Models

A-81x 3-D model

Version / Date
2018-10-04
zip - 6 MB

Quote / Order

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

One axis

A-811.21B10
PIglide motion controller, 19" rack unit, one axis, absolute encoder with BiSS-C or EnDat 2.1/2.2 signal transmission, Output current 10 A continuous / 20 A peak
A-811.21B00
PIglide motion controller, 19" rack unit, one axis, absolute encoder with BiSS-C or EnDat 2.1/2.2 signal transmission, Output current 5 A continuous / 10 A peak
A-811.21B02
PIglide motion controller, 19" rack unit, one axis, absolute encoder with BiSS-C or EnDat 2.1/2.2 signal transmission, Output current 2.5 A continuous / 5 A peak
A-811.21C10
PIglide motion controller, 19" rack unit, one axis, incremental encoder with A/B quadrature signal transmission, Output current 10 A continuous / 20 A peak
A-811.21C02
PIglide motion controller, 19" rack unit, one axis, incremental encoder with A/B quadrature signal transmission, Output current 2.5 A continuous / 5 A peak

Two axes

A-812.21B00
PIglide motion controller, 19" rack unit, two axes, absolute encoder with BiSS-C or EnDat 2.1/2.2 signal transmission, Output current 5 A continuous / 10 A peak
A-812.21B02
PIglide motion controller, 19" rack unit, two axes, absolute encoder with BiSS-C or EnDat 2.1/2.2 signal transmission, Output current 2.5 A continuous / 5 A peak
A-812.21C02
PIglide motion controller, 19" rack unit, two axes, incremental encoder with A/B quadrature signal transmission, Output current 2.5 A continuous / 5 A peak

Four axes

A-814.21B00
PIglide motion controller, 19" rack unit, four axes, absolute encoder with BiSS-C or EnDat 2.1/2.2 signal transmission, Output current 5 A continuous / 10 A peak
A-814.21B02
PIglide motion controller, 19" rack unit, four axes, absolute encoder with BiSS-C or EnDat 2.1/2.2 signal transmission, Output current 2.5 A continuous / 5 A peak
A-814.21C00
PIglide motion controller, 19" rack unit, four axes, incremental encoder with A/B quadrature signal transmission, Output current 5 A continuous / 10 A peak
A-814.21C02
PIglide motion controller, 19" rack unit, four axes, incremental encoder with A/B quadrature signal transmission, Output current 2.5 A continuous / 5 A peak

Upgrades (at factory or retrofitted)

Accessories (please order separately)
